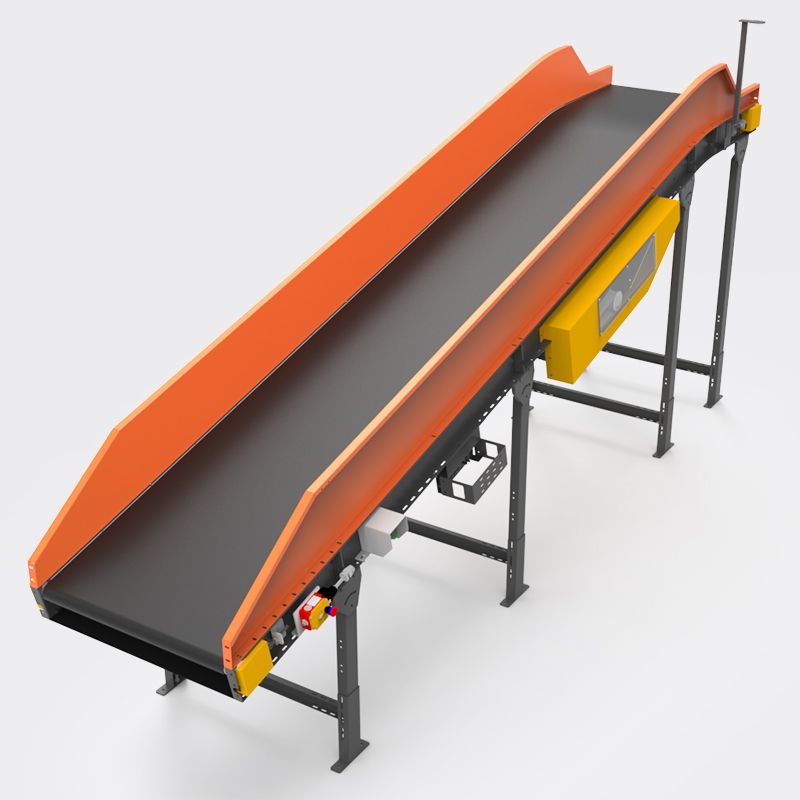

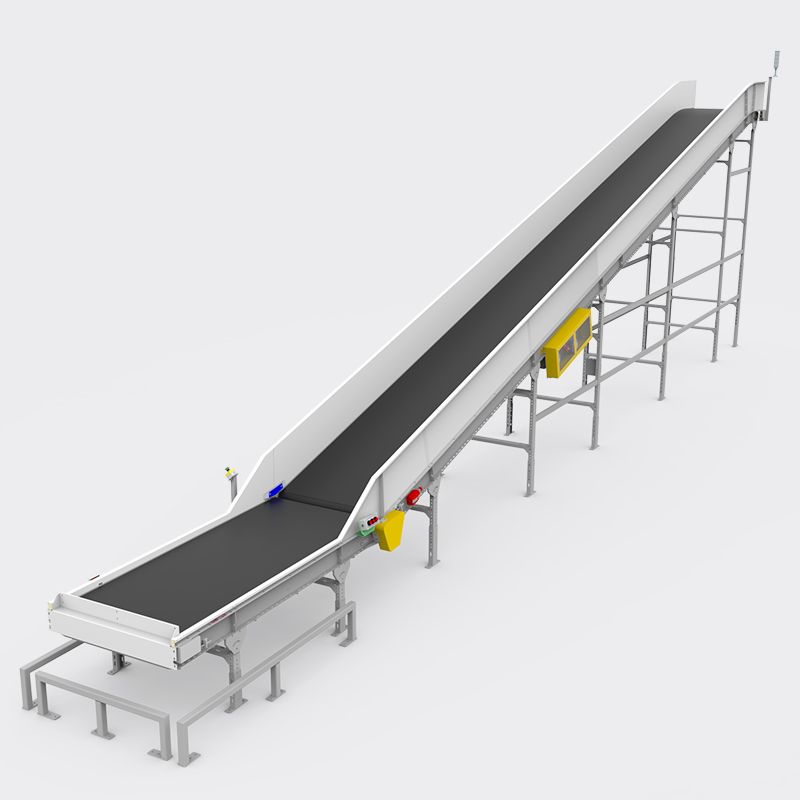

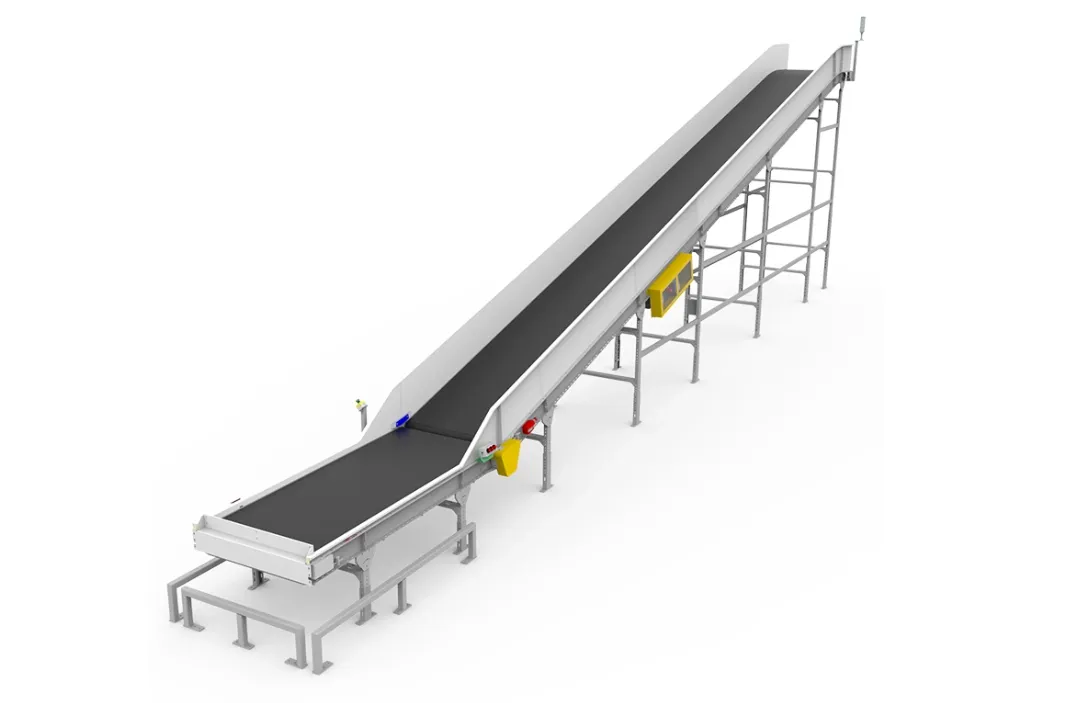

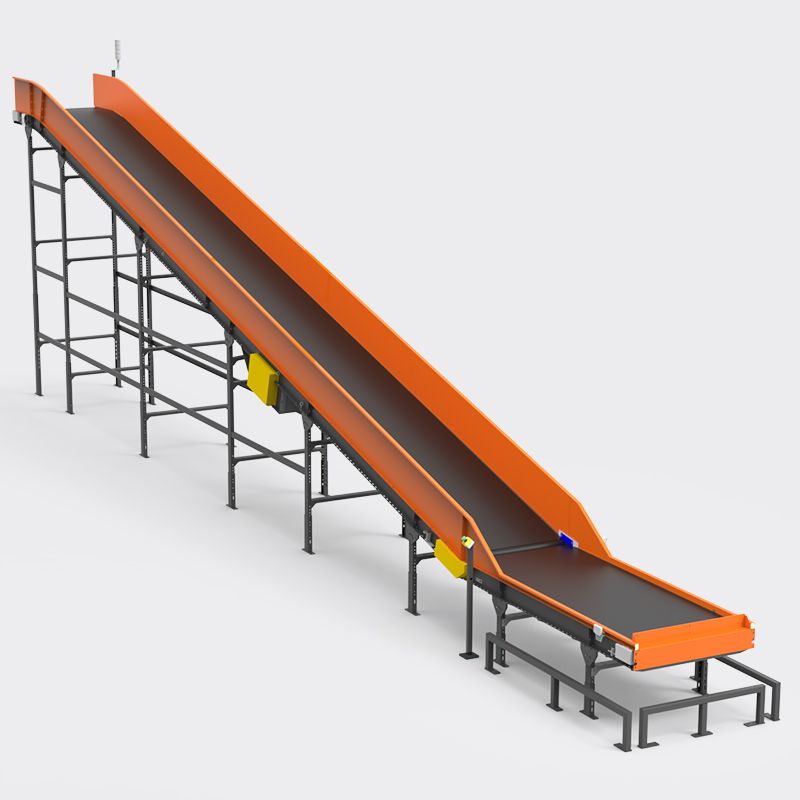

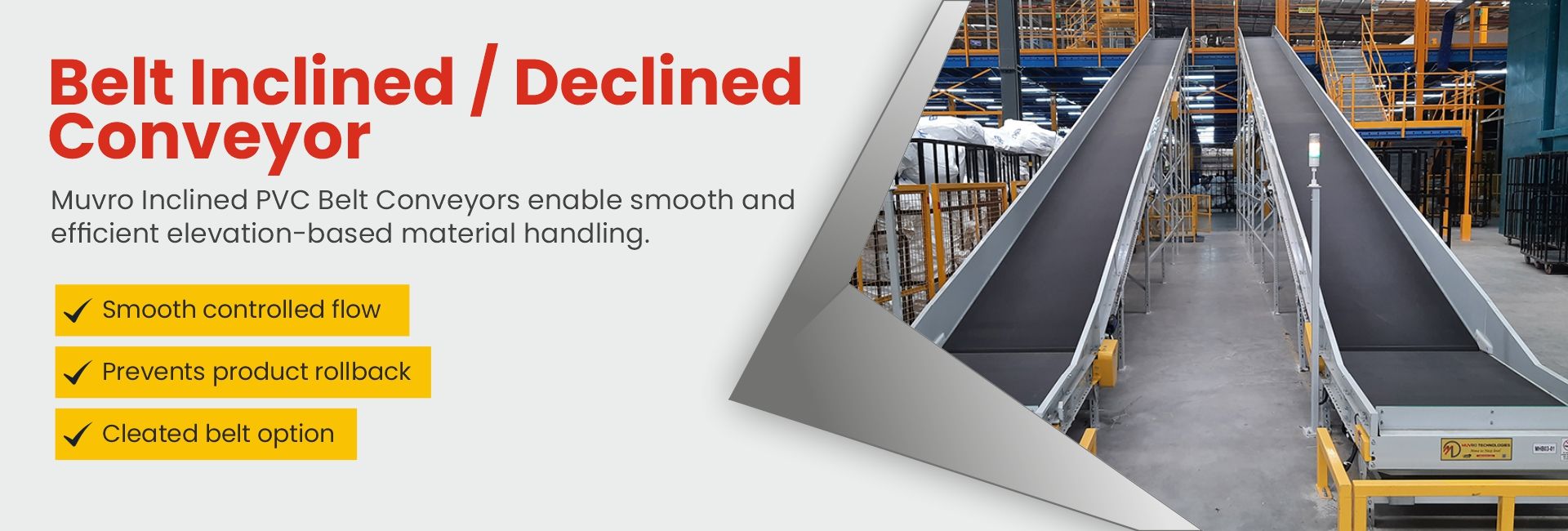

At Muvro Conveyor Systems, we offer a wide range of conveyor solutions, including Inclined PVC Belt Conveyors, designed to facilitate smooth and efficient material transport across different elevation levels. These conveyors are an excellent choice for industries such as food processing, packaging, warehouse automation, e-commerce, assembly, and logistics, where products need to be moved seamlessly between different heights. One of the key advan...
Our Inclined PVC Belt Conveyors come in a variety of customizable designs to meet specific material handling needs. They can be manufactured with different incline angles up to 30degree, depending on the requirements of the operation. Additional features such as side guards, chutes, and hoppers can be integrated to optimize efficiency and product flow.
Energy efficiency and low maintenance are two additional benefits of using an inclined PVC belt conveyor. These conveyors require minimal power consumption while delivering high performance, making them a cost-effective solution for businesses. Their simple yet robust construction ensures reliability and reduces the need for frequent repairs or maintenance interventions

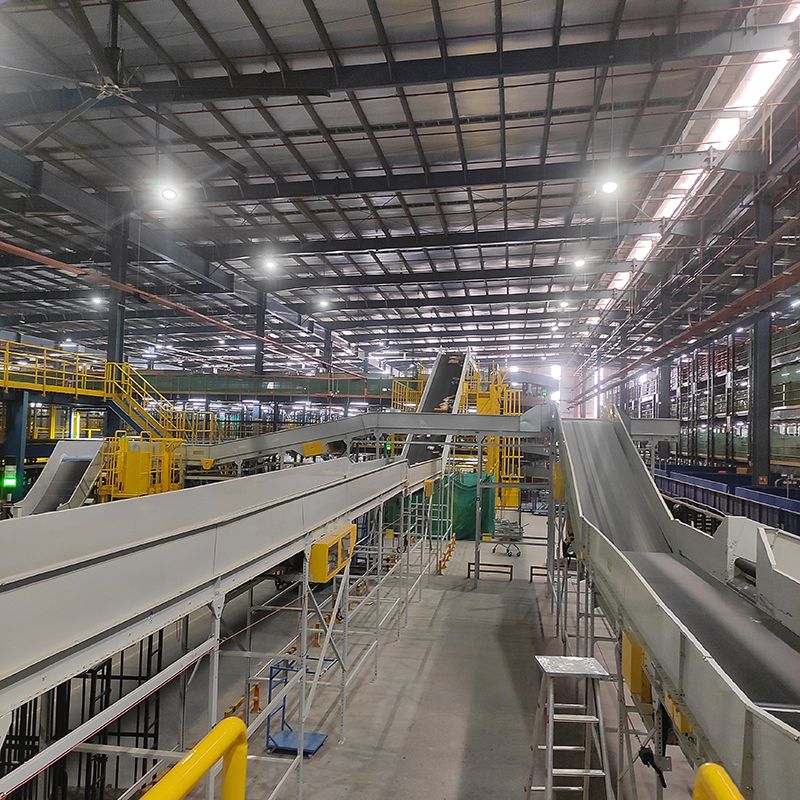

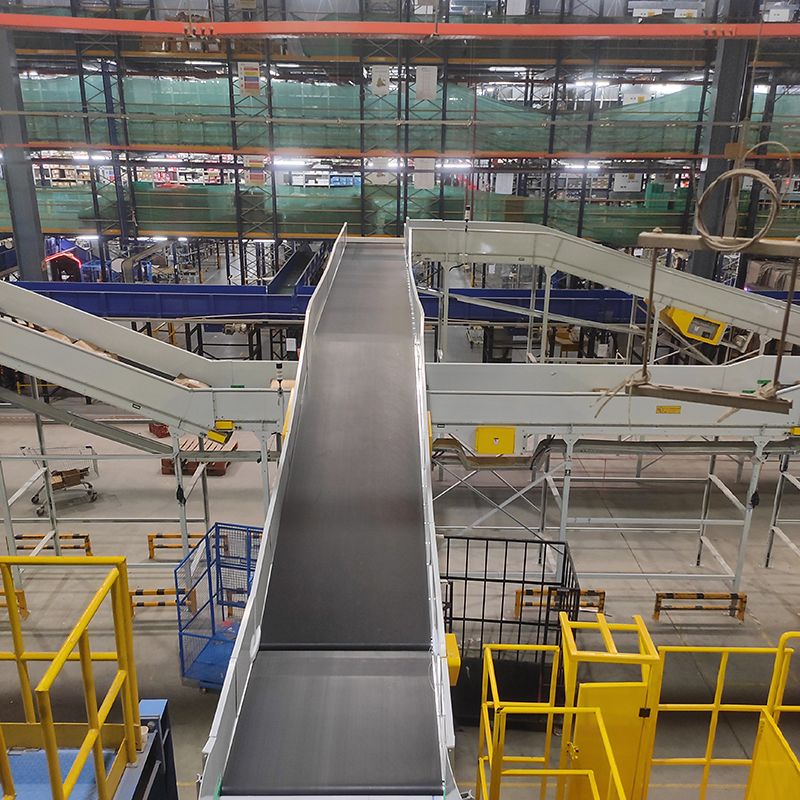

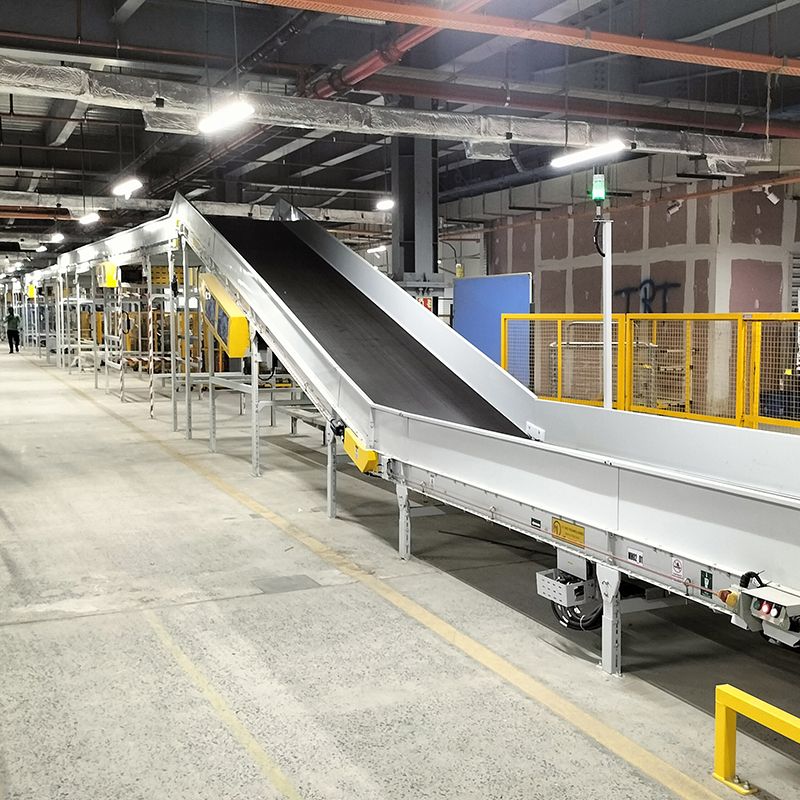

Used to transport goods between different floors or storage levels efficiently
Benefit from their hygienic and easy-to-clean properties, making them ideal for handling raw or packaged food products
Moving parts or products seamlessly through various stages of production.
Comes with free-flow universal rollers, adjustable speed control, modular construction, and AC geared motor drive, designed for efficient, customizable material handling across industrial applications.
25 to 125 kg/mtr.
Load Capacity
10-40m/min
Conveying Speed
≤90% (without condensation)
Ambient Humidity
up to 6 degree
Incline / Decline
Free Flow universal roller
Roller Type
Ø50 mm, Ø60mm
Roller Diameter
Steel | 1.5mm/3mm, zinc-plated
Roller Material
1200mm
Mounting Pitch (Return Roller)
450mm
Mounting Pitch (Top Roller)
230~415V
Rated Voltage
0.5kw~5.0kw
Electrical Power
Gear Motor
Motor Type
Smooth, 2-layer, PVC, longitudinally grooved for incline
Conveyor Belt
Steel Sheet 2 mm
Slider Bed
Customize
Side Guide
600mm, 800mm, 1000mm, 1200mm, 1500mm
Between Frame
BF+100mm
Total Width
25000mm Max
Module Length
700± 50mm Adjustable *(700 to 2300 height available as per requirement)
Height
*Module is completely assembled but not wired at factory
Factory Assembly
Customizable
Side Guides
Customizable
Product Color
Included with Complete Module
Leg Supports
