High-Speed Cross Belt Loop Sorter – Case Study
Layout Optimization, Throughput Enhancement & ROI Improvement
From Congestion to High Performance
An e-commerce fulfillment center handling 15,000–20,000 parcels/hour faced increasing volumes, leading to congestion, high manpower dependency, missorts, and space limitations.
A High-Speed Cross Belt Loop Sorter was selected to meet ambitious growth targets — transforming a labor-intensive operation into a highly automated fulfillment center without warehouse expansion.
Project Objectives
Increase throughput to 40,000 PPH
Reduce manpower and footprint
Increase destination chutes without expansion
Achieve ROI within 30 months
Deploy a stable 24/7 automated solution
Operational Bottlenecks
The facility faced multiple constraints that demanded a comprehensive automation solution beyond conventional sorting systems.
Irregular wide parcel range: 50 g–10 kg, polybags to cartons
Limited warehouse space and fixed building layout
Manual bottleneck — manual secondary sorting and long operator travel
Previous sorter reliability issues
Manual shipment profiling and weighing causing billing inaccuracies
High missort rates and parcel rehandling
Integrated Automation Strategy
A multi-layered approach combining layout engineering, smart induction, advanced controls, and automated profiling to deliver end-to-end performance gains.
Layout Optimization
- Compact loop sorter with dual-side chute arrangement
- U+C hybrid layout for maximum chute density
Smart Induction System
- Multi-stage induction with automatic gap creation
- Dynamic speed matching
- Integrated dimensioning, weighing, and barcode scanning
- Vision systems from SICK and Cognex
Advanced Controls
- Redundant PLC and WCS architecture
- Real-time cart tracking and automatic recirculation
- OEE, chute status, and alarm monitorin
Automated Profiling, Weighing & Billing
- Automatic dimensioning and weighing replaced manual processes
- Improved shipment data quality and billing accuracy
- Automated destination allocation and recirculation
- Operators focused only on induction and chute management
Tangible Business Impact
Beyond operational metrics, the project delivered significant commercial advantages and long-term competitive positioning.
84 Destinations
Increased from 43 to 84 destination chutes
2.1× Daily Capacity
Daily sorting capacity more than doubled
~32% OPEX Reduction
Significant operational cost savings
Faster Turnaround
Improved truck loading and dispatch speed
Same-Day Dispatch
Enabled same-day order fulfillment capability
22–26 Month ROI
Return on investment achieved ahead of target
Structured Go-Live Approach
A phased deployment methodology ensured smooth transition, operator readiness, and sustained system reliability from day one.
FAT and live parcel testing
Phased ramp-up to full throughput
3% spare cart strategy
Preventive maintenance program
Operator certification and hypercare support

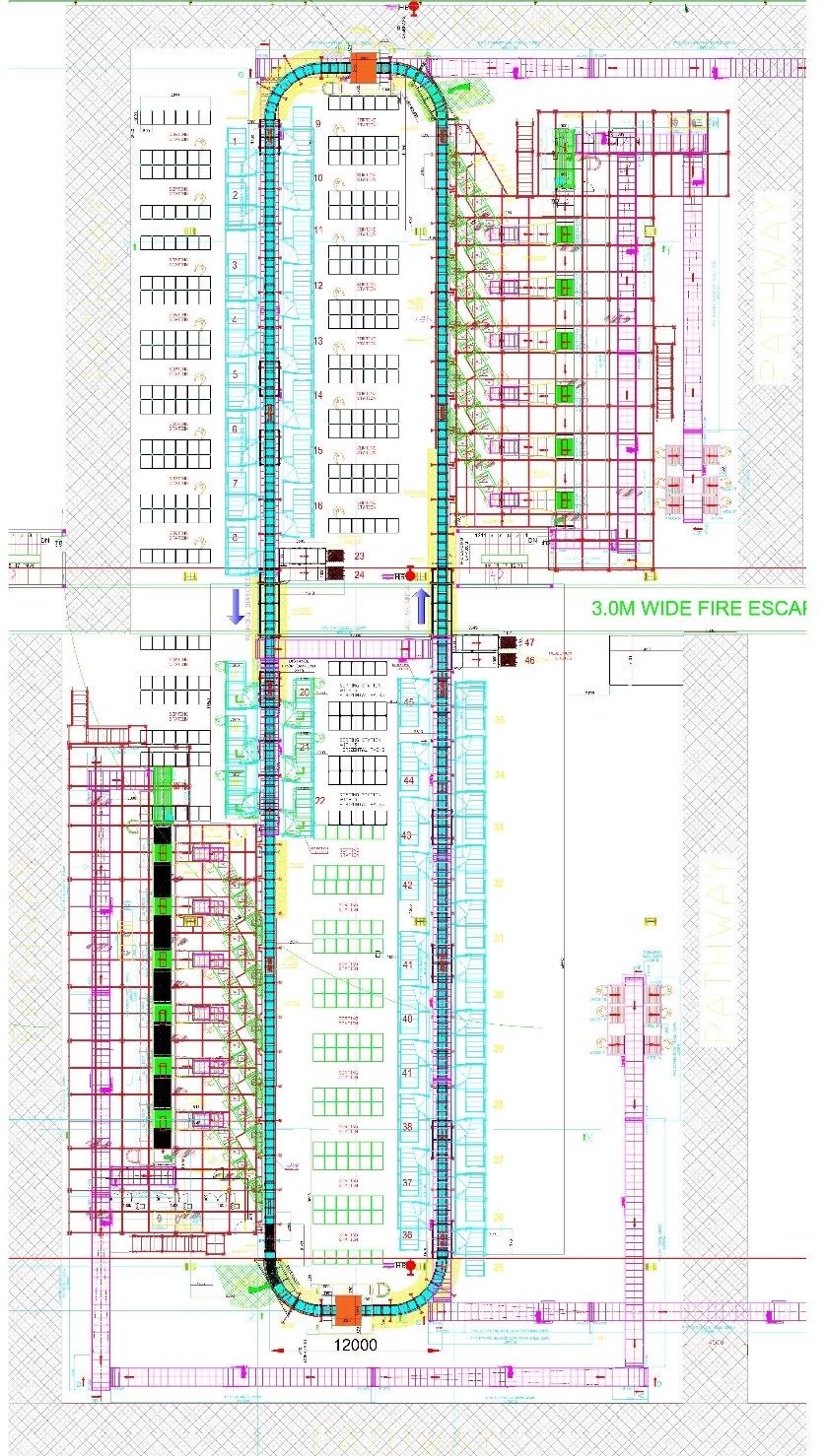

Case Study 1
Sr. No. Description Specification Qty. 1 Min Parcel Size (mm) 100 × 50 × 10 - 2 Max Parcel Size (mm) 600 × 400 × 300 - 3 Min Parcel Weight 0.05 kg - 4 Max Parcel Weight 08 kg - 5 Infeed Conveyor L-6700, W-800 (4 Conveyor) 12 Sets 6 Weighing System L-1200, W-800 12 Nos. 7 Barcode Scanner - 2 Nos. 8 Volume Measuring System Sick 2 Nos. 9 Throughput Required 20,000 Parcels/hr - 10 VDS Chute L-3250, W-1200 12 Nos. 11 No. of Discharge Chute Entry-1500 / Exit-1200 43 Nos. 12 Rejection Chute Entry-1200 / Exit-1000 4 Nos. 13 Secondary Sorting Manual 1,548 Nos. 14 Controller - 1 Set 15 WCS - 1 Set

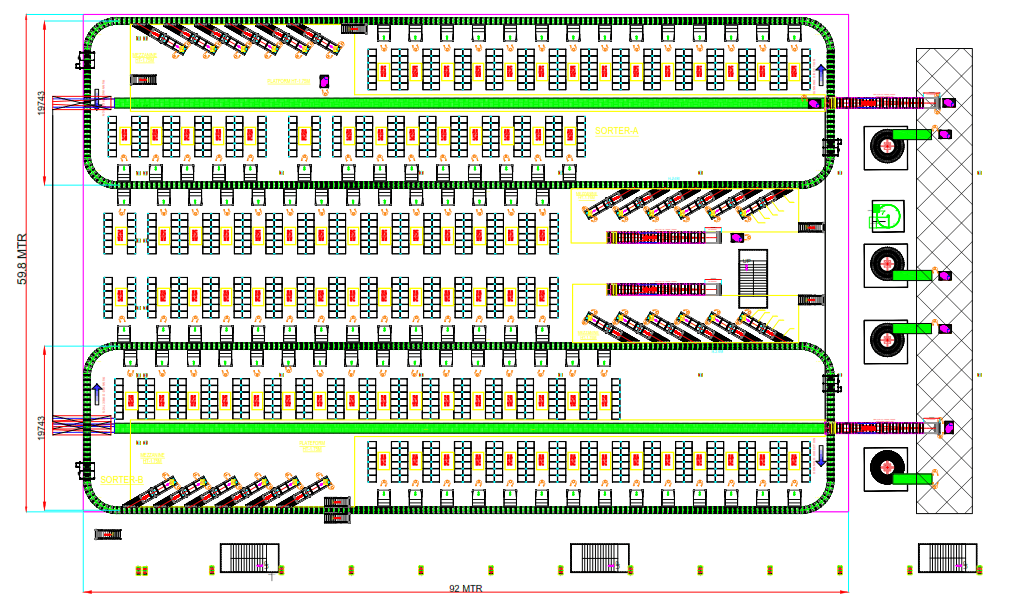

Case Study 2
Sr. No. Description Specification Qty.
1 Min Parcel Size (mm) 100X100X10 -
2 Max Parcel Size (mm) 600X400X300 -
3 Min Parcel Weight 0.05 kg -
4 Max Parcel Weight 10 Kg -
5 Infeed conveyor L-6950, W-800 (4 Conveyor) 24 Set
6 Weighing System L-1000, W-800 24 Nos.
7 Barcode Scanner - 4 Nos.
8 Volume Measuring System Sick 4 Nos.
9 Throughput required 40000 Parcels /hr. -
10 VDS Chute - NA
11 No. of Discharge Chute Entry-1500/ Exit-1300 84 Nos.
12 Rejection Chute Entry-1500/ Exit-1300 4 Nos.
13 Secondary sorting Manual 3024 Nos.
14 Controller - 2 Set
15 WCS - 2 Set
Conclusion
The High-Speed Cross Belt Loop Sorter transformed the facility from a labor-intensive operation into a highly automated fulfillment center, delivering 40,000 PPH throughput, >99.99% sort accuracy, 45% manpower reduction, and ROI within 2 years while supporting future growth without warehouse expansion.
