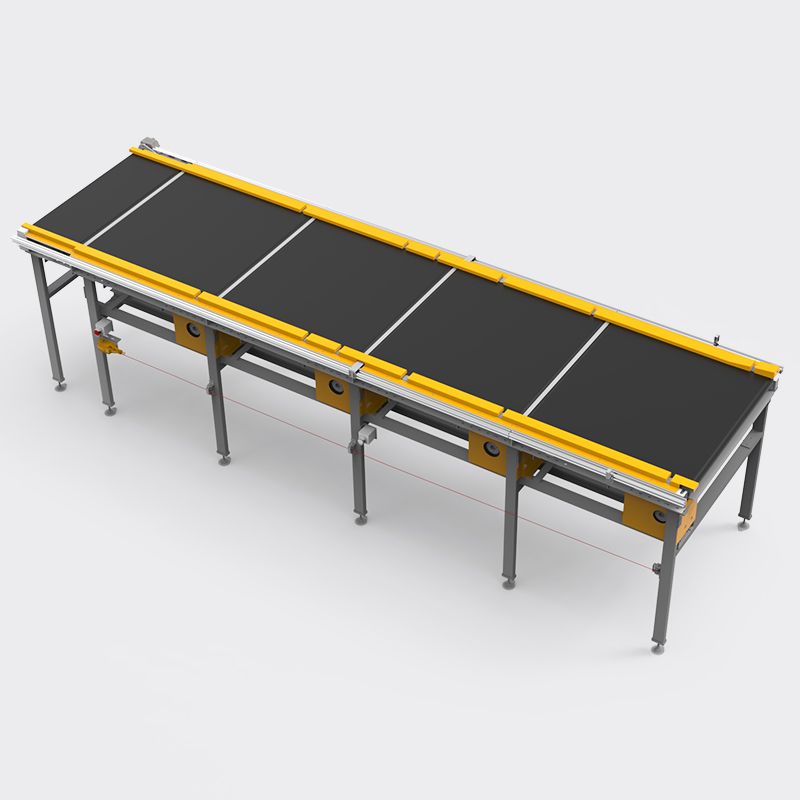

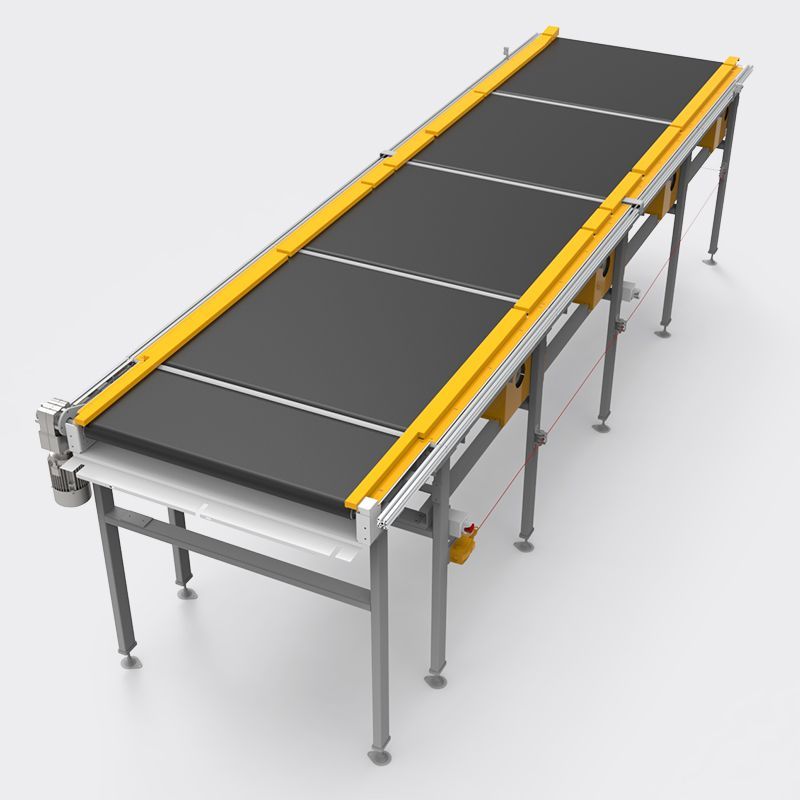

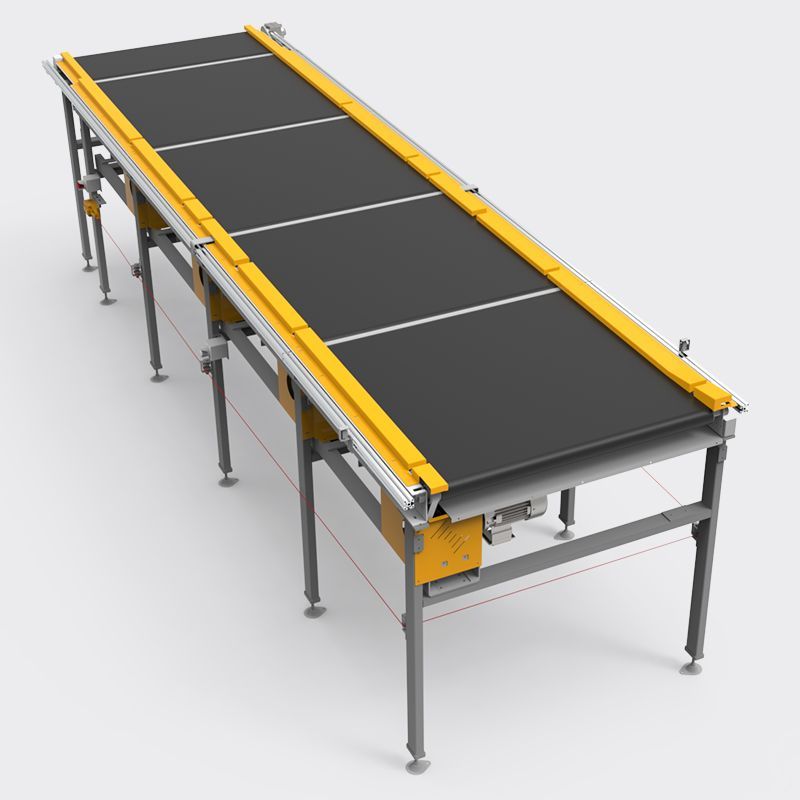

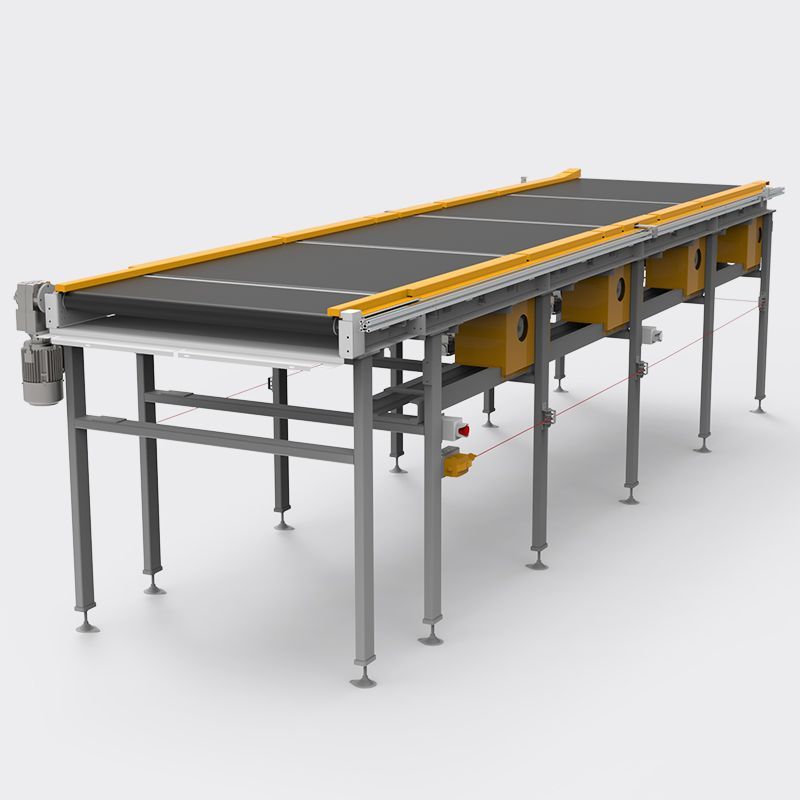

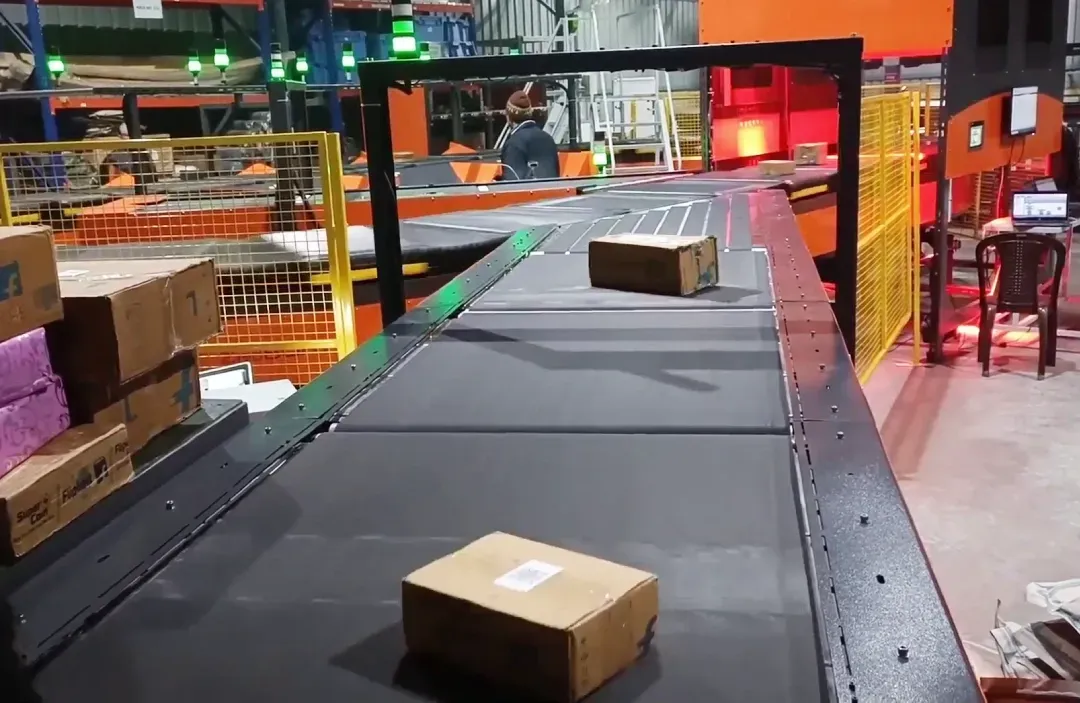

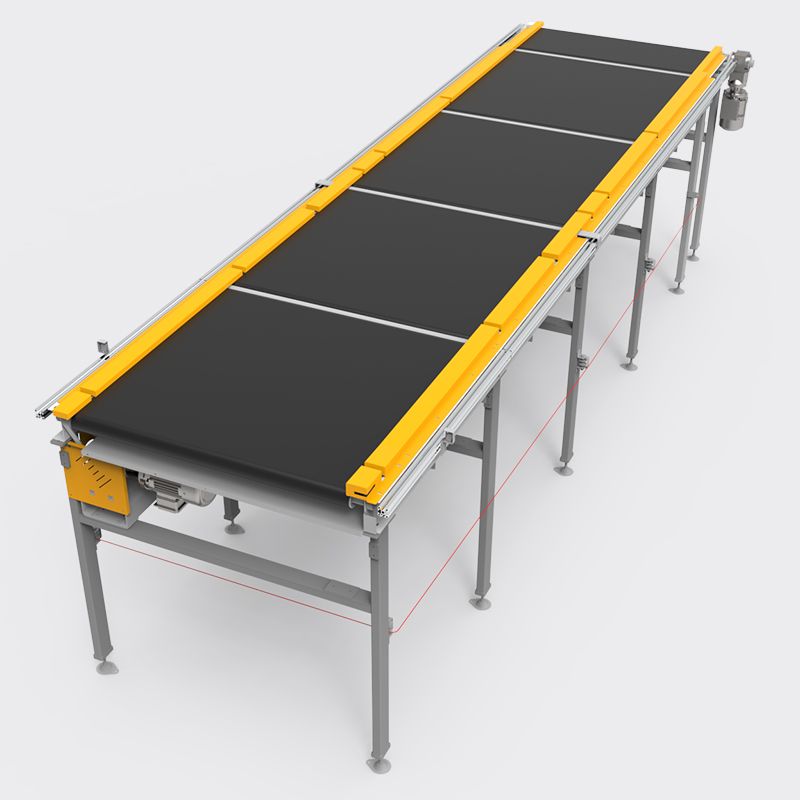

A Gapper PVC Conveyor is an essential component in logistics, e-commerce, and parcel sorting systems. It is designed to create precise gaps between parcels, enabling efficient scanning, weighing, sorting, and routing. The conveyor ensures optimal spacing between packages to enhance automation accuracy in high-speed distribution centers.
Constructed with a durable PVC (Polyvinyl Chloride) belt that offers excellent wear resistance, the system is available with either smooth or rough (grip-type) surfaces to prevent parcel slippage and is designed to support high-speed operations without compromising stability.
Creates consistent and precise gaps between parcels for scanning, weighing, or diverting, and can be configured through a Variable Frequency Drive (VFD) or a Servo Motor Controller. Photoelectric sensors detect incoming parcels to maintain uniform spacing.
Made from Mild Steel (powder-coated) or Stainless Steel to ensure durability and corrosion resistance, featuring a robust frame design that enables vibration-free operation even at high speeds. The conveyor widths are customizable to accommodate different parcel sizes.
Operates at speeds of up to 160 meters per minute, which can be varied through a combination of conveyor modules, and supports a load capacity of up to 175 kg/m, making it suitable for handling parcels of different weights. This makes it ideal for high-throughput environments such as e-commerce fulfilment centers.
Integrated PLC-based control panel for easy operation, along with an HMI (Human-Machine Interface) that allows real-time adjustments to speed and gap settings. The system also includes safety features such as emergency stop buttons and overload protection.
Seamlessly integrates with existing sorting, weighing, and scanning systems, while also working with automated conveyors, sorters, diverters, and warehouse management systems (WMS). Its modular design allows for easy expansion and maintenance.
Automated parcel spacing for sorting & packing.
Efficient parcel handling in high-speed distribution.
Smooth package separation for weighing and scanning.
Precise luggage separation before sorting.
Enhances workflow efficiency in fulfilment centers.
Designed for efficient, low-noise handling of cartons, parcels, totes, and lightweight pallets, offering customizable dimensions, variable speed, and seamless automation integration.
Mild Steel (Powder-Coated) / Stainless Steel
Frame Material
PVC (Smooth or Grip Surface)
Belt Type
PLC with VFD for Speed & Gap Control
Control System
Photoelectric Sensors for Parcel Detection
Sensors
< 75 dB (Low Noise Operation)
Noise Level
Adjustable for Different Parcel Sizes
Side Guides
1.5 mm – 4 mm
Belt Thickness
300 mm – 1200 mm (Customizable)
Width
500 mm – 6000 mm (Customizable)
Length
700 mm – 1200 mm (Customizable)
Height Adjustment
Up to 160 m/min, Variable (Adjustable)
Speed
Up to 175 kg/m
Load Capacity
AC Motor / Servo Motor with Gearbox
Drive Type
0.37 kW – 2.2 kW
Power Requirement
220V / 380V / 440V
Voltage
Connect with our automation specialists to discover efficient, reliable, and cost-effective material handling and warehouse solutions tailored to your business needs.
