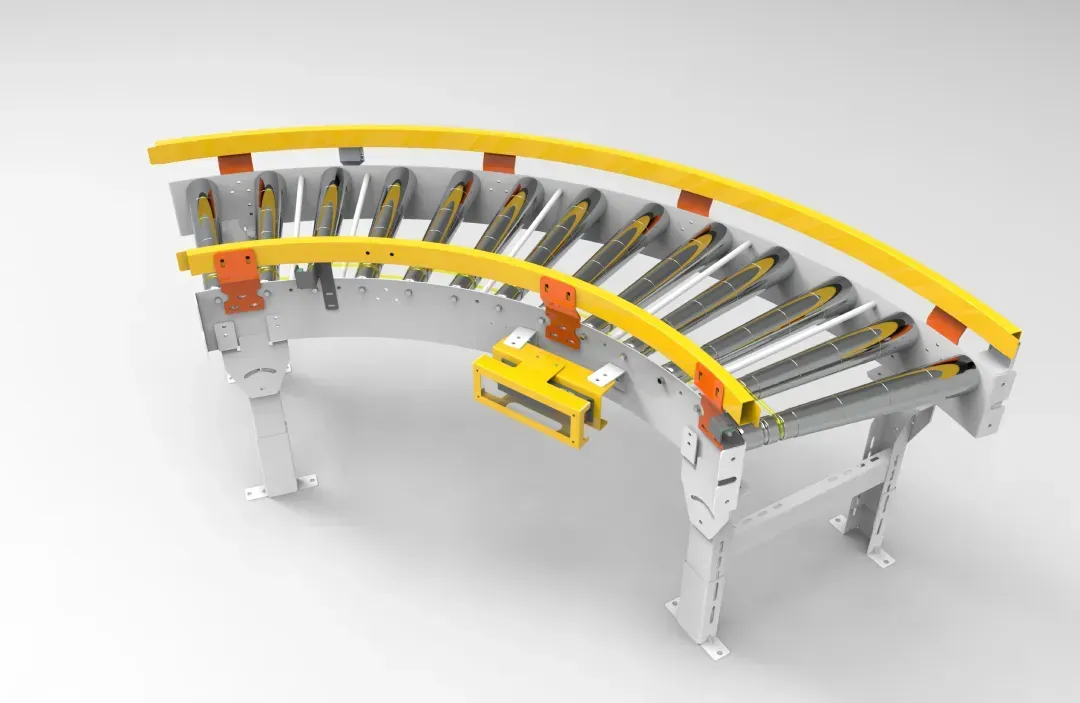

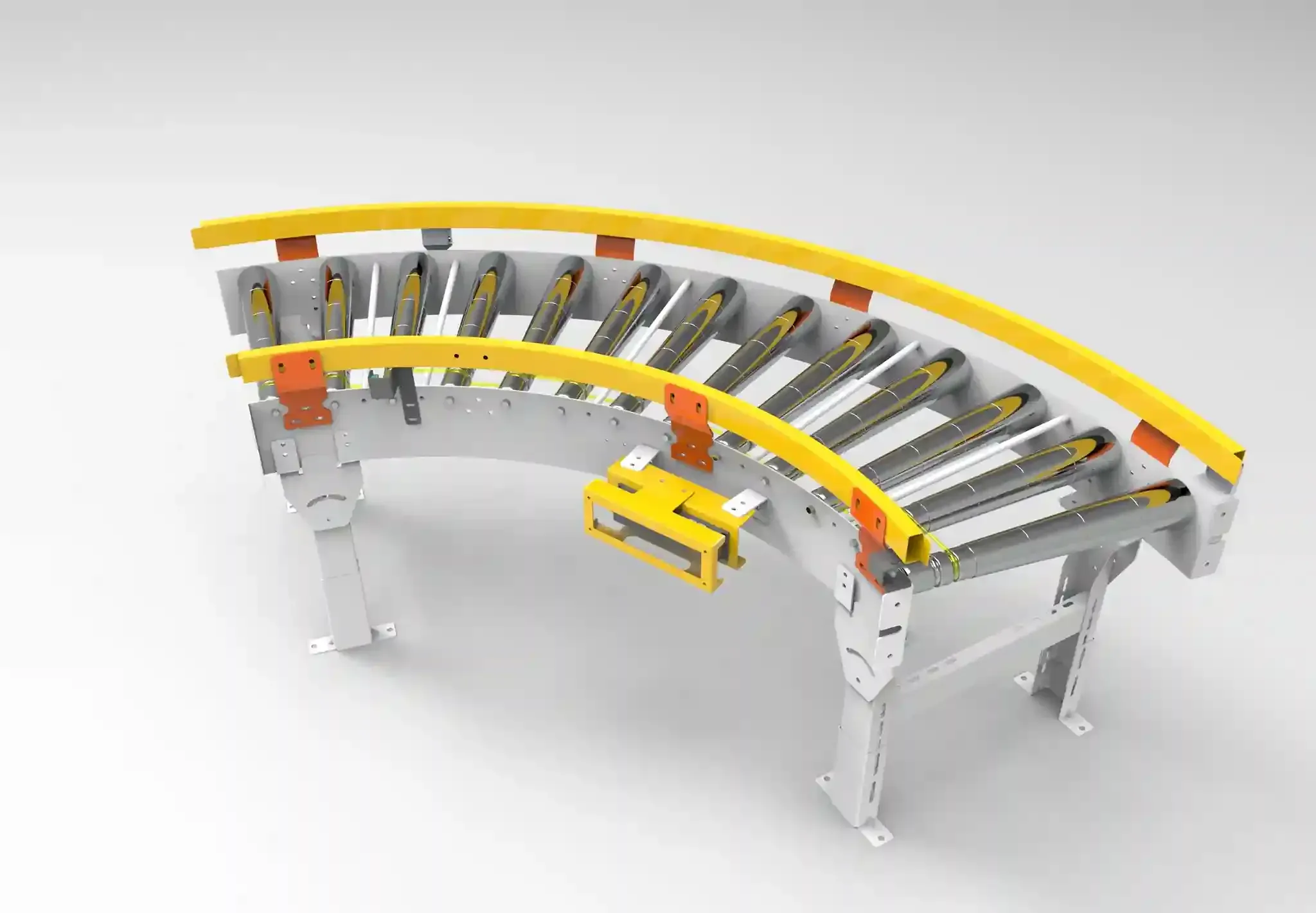

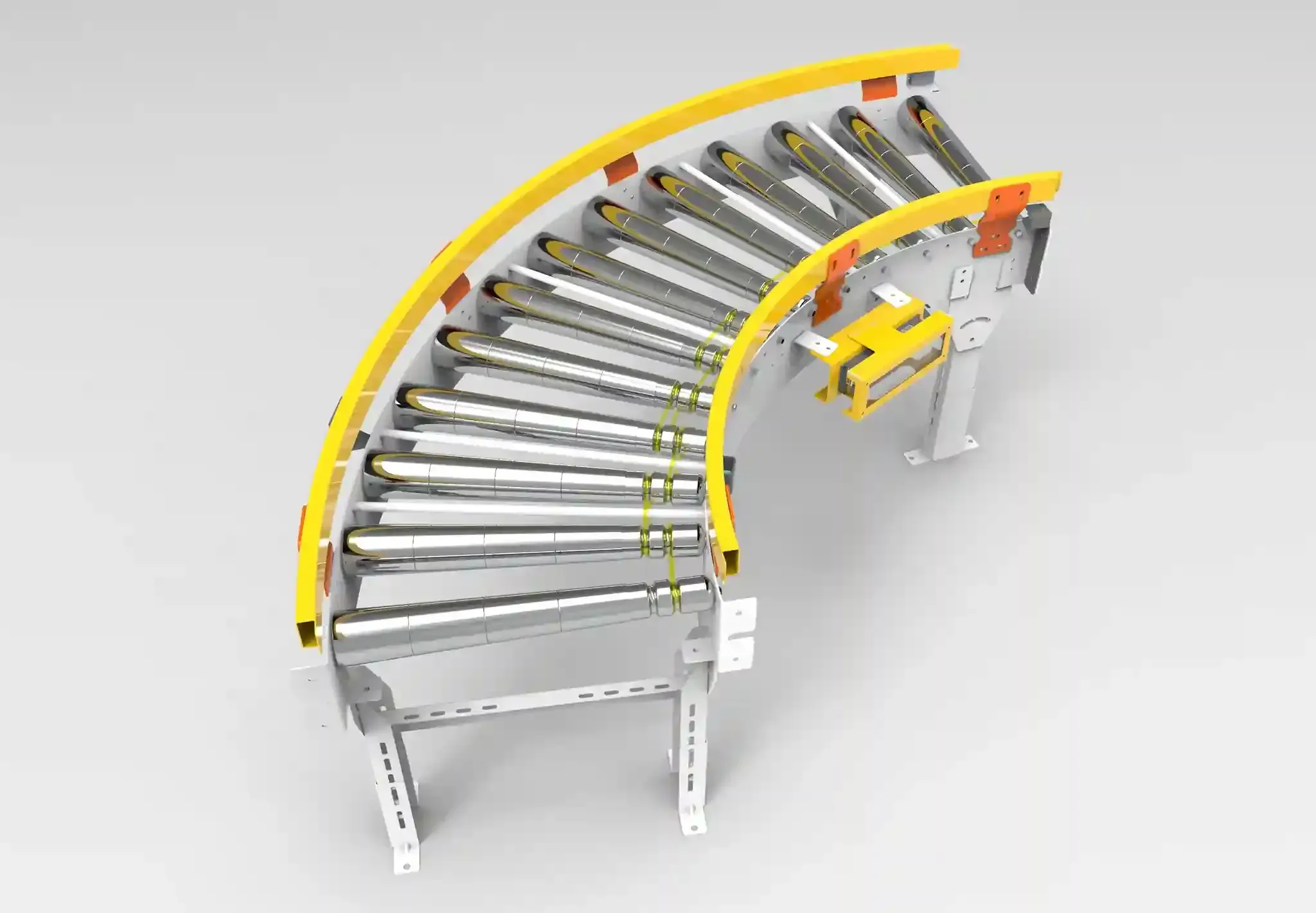

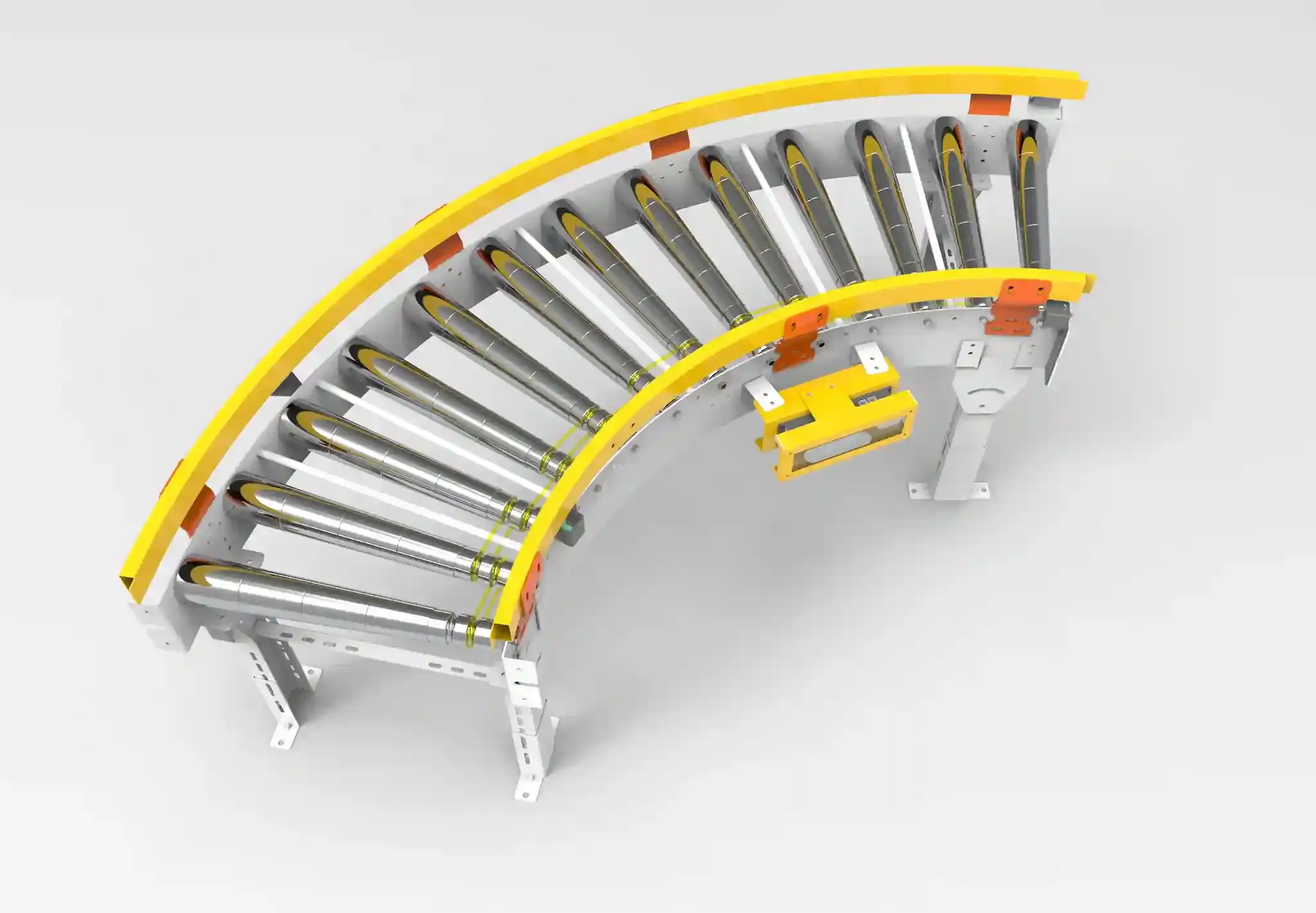

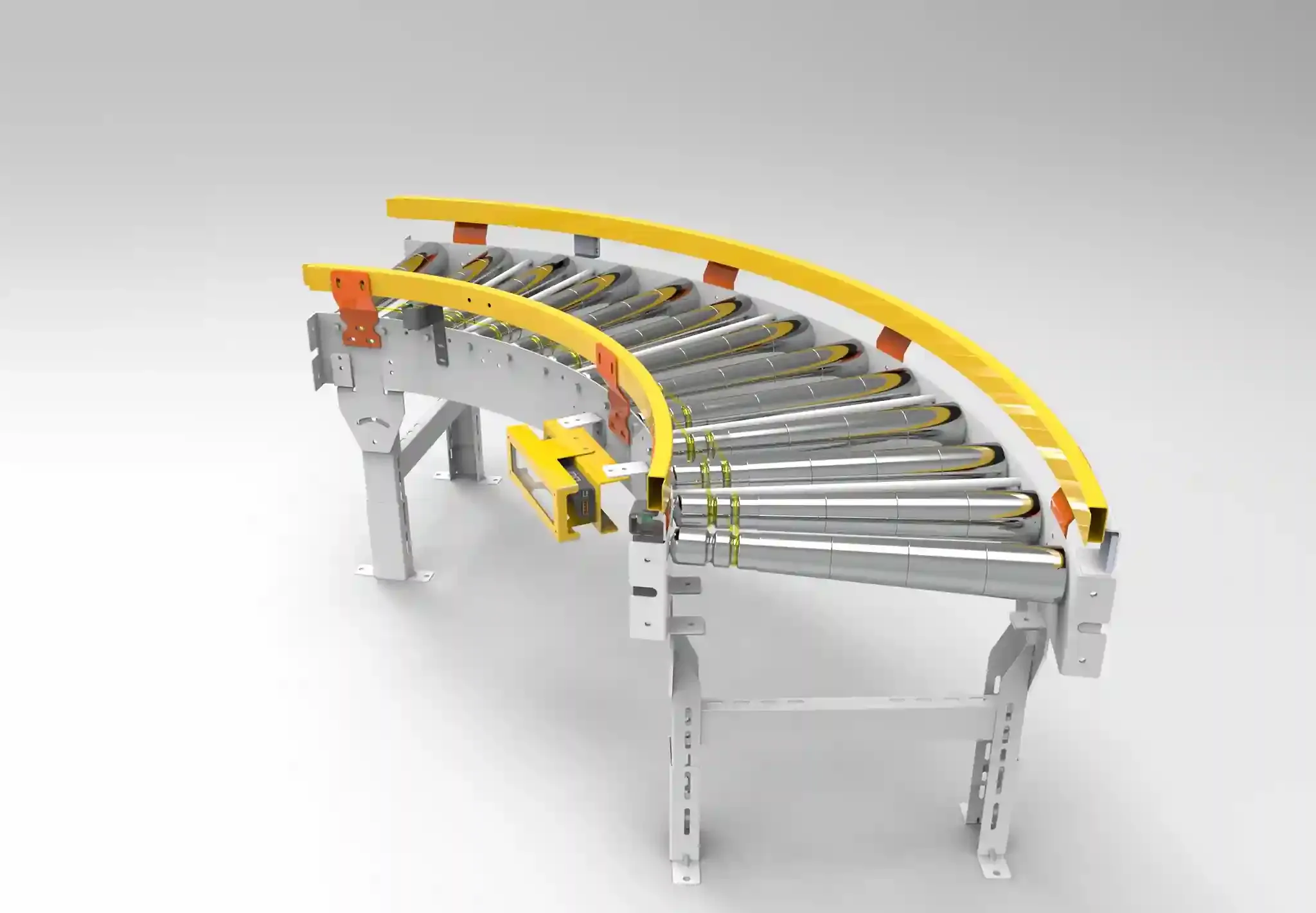

Muvro's Roller Curve Conveyor is an advanced material handling solution designed for smooth product transport around curved paths while maintaining orientation. Equipped with tapered rollers, it ensures seamless movement for cartons, trays, and tyres in both powered and gravity-driven conveyor systems. Engineered for precision and durability, this conveyor enhances operational efficiency in warehouses, logistics hubs, manufacturing plants, and di...
Products remain centered, avoiding drift toward the outer radius.
Minimizes product and conveyor wear compared to cylindrical rollers.
Maintains alignment even at speeds above 0.8 m/s, countering centrifugal force.
Tapered elements are secured from the inside, preventing movement and enhancing durability.
Grey and black rollers withstand freezing conditions down to -20°C, with black rollers offering anti-static protection.
Ensure precise product alignment and smooth navigation around curves.
Available in 30°, 45°, 60°, and 90° angles for easy system integration.
Supports 5 to 50 kg/m, ideal for industrial and warehouse use.
Tube, Cone, Curve Radius & Drive Options
Gravity models cut energy costs, while motorized units feature optimized drives.
Precision bearings reduce noise and vibration.
Muvro offers four variants to meet diverse operational needs:
Electric motor-driven for automated, high-speed systems.
Utilizes gravity for lightweight, cost-effective material handling.
A continuous belt enhances grip for fragile items.
Robust chain drive for heavy loads like industrial components.

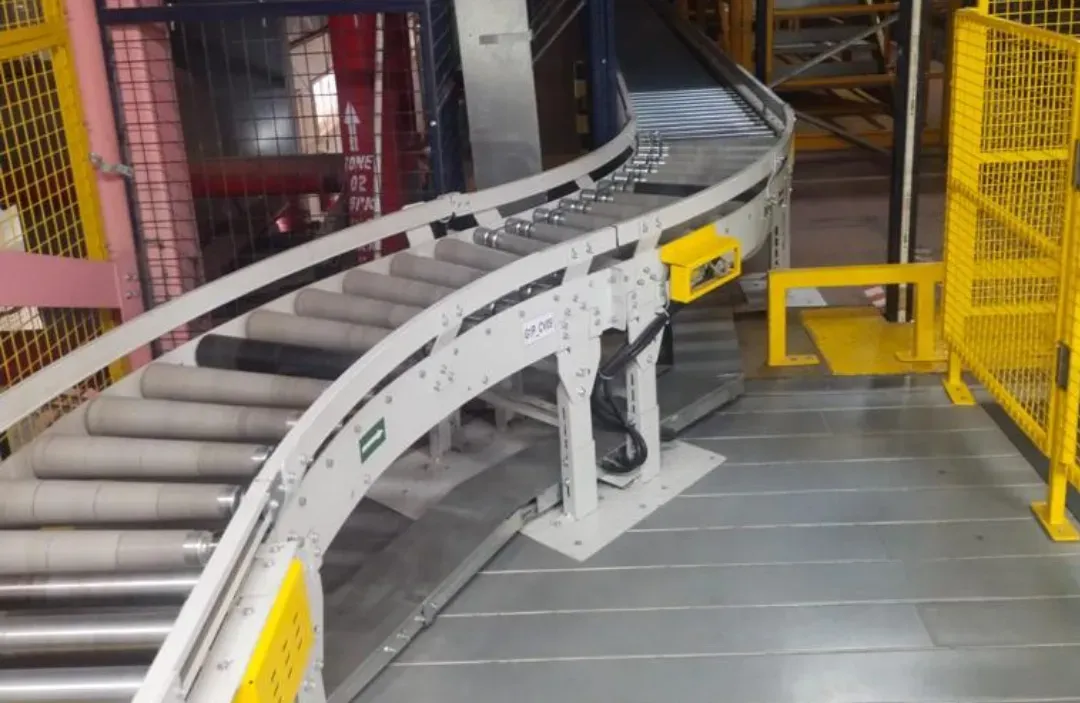

Efficient carton and package handling around facility curves.

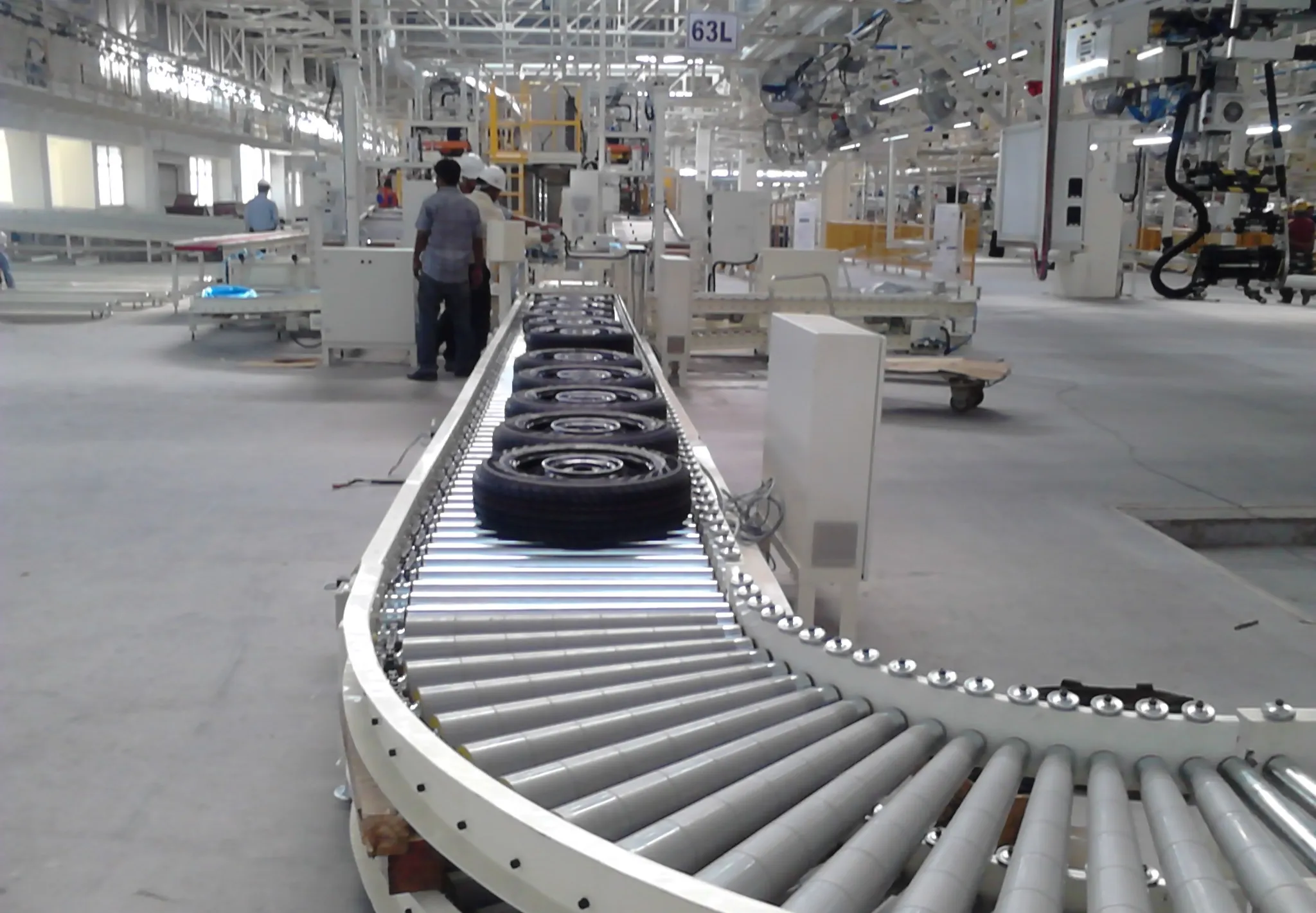

Smooth product flow in automotive, electronics, and machinery production.
High-speed package movement for order fulfilment.
Stainless steel rollers ensure hygienic handling of packaged goods.
The Roller Curve Conveyor is a modular material handling solution engineered for smooth directional movement of products in logistics, warehouse automation, parcel handling, and industrial conveyor systems.
Roller Curve Conveyor
Conveyor Type
Modular
Conveyor Construction
Tyres, Wheel, Pallets, Carton Box, Plastic Bag, Tray, Totes and Mostly Flat Bottom Items.
Conveying Products
< 70 Dba ( Excluding Environmental & Platform )
Running Noise
Tapered Start From 52.5 mm to 116 mm for 1000 mm Length.
Roller Tube Dia & Thickness
Polypropylene with 1.8° and 2.2° conicity.
Roller Taper Cone
Zinc-plated steel, stainless steel, or aluminium.
Roller Tube Material
Fixed Drive Roller / Universal Conveyor Roller
Roller Type
PU Cord / Flat Belt , Gravity
Roller Drive Head
100 mm
Roller Mounting Pitch
Curve Radius - 800/850 mm and 690 mm options.
Conveyor Curve Radius
500 mm to 1000 mm (customizable)
Conveyor Width
300 mm - 1200 mm
Conveyor Height
Adjustable (30°, 45°, 60° & 90° )
Merge Angles
Steel Wheel , Round Tube , U Channel
Side Guide
50 mm , 150 mm
Side Guide Height
30 Kg, 50 kg Mtr Max
Conveying Capacity
60 ~ 120 Mtr /Min
Conveyor Speed
Power Rollers / AC Geared Motor / Servo Motors
Conveyor Drive
24 VDC
Rated Voltage
3 Phase ( 360 ~440 VAC )
Main Power Supply to Control Box
50~60 Hz
Rated Frequency
By PLC
Sequence Control
By VFD / Roller Drive Card
Speed Control
HMI
Man Machine Interface
Optional
SCADA / WCS
Profinet / Ethernet / Modbus
Communication Protocol
Profinet / Ethernet / Modbus
Real Time Communication
Photo Electric Sensors
Sensors
Safety Covers, Photo Sensors with Mounting Brackets , Cable Tray ,Bottom Cover
Conveyor Accessories
Made from high-quality CRC steel sheet, CNC laser cut and bent into a C-profile with collar bends
Conveyor Frame
Made from high-quality CRC steel sheet, CNC laser cut and bent into a C-profile
Conveyor Legs
Shot Blasted and Powder Coated
Painting
Gray RAL-7016 , Orange Glossy HGS 2302, As per Choice
RAL Colour
CE, ISO 9001, OSHA, UL
Certifications
(-)10°C to 40°C (humidity 10-95% non-condensing)
Ambient Temperature Range
